Our most popular keypad door lock – now with more codes & power!
More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
5AA battery operated; 5 years battery life or 200,000 cycles, typ. For outdoors, specify WP Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
New! DL2700LD with Lock-Down Indicator Light Bar & Keyfob
New Model in popular, standalone DL2700 T2 Series, designed for in K12/Campus Applications
At the first sign of trouble, faculty & staff can remotely press their pocket-sized keyfob's button to lock out unauthorized access, instantly locking-down a classroom or area, while all can remain safely within the room or area
For multi-classroom users, up to 50 keyfobs can be supported on each lock. Up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
Each keyfob can control up to four locks for remote lockdown activation, up to 100' away
Large Indicator Light Bar on insidedoorconfirms to occupants that the door has been successfully locked down. Small Visible/Audible indicator outside, too.
Lockdown Override Code will reactivate the pushbutton keypad and enable authorized teachers/staff and first responders, outside the classroom or area, to readily deactivate the lockout function at any time.
Retrofits any standard classroom lockset, vandal-resistant all-metal keypad & rugged Grade 1 durability, installed in under an hour 5AA battery operated; 3 to 4 years battery life or 100,000 cycles, typ.

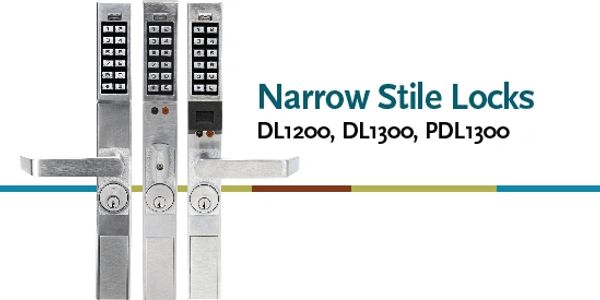

Trilogy DL1200 Narrow Style
Now get convenient keyless PIN code or Prox access anywhere there’s a glass door with Trilogy Weather Proof Access Keypads
Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time) Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Long-life, battery- operated for 100,000 and 80,000 cycles respectively, typ.on 2 lithium 3V batteries, supplied; low battery alert
Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
Backsets 31/32",1-1/8" and 1-1/2"; Stile thickness 1-3/4"
Non-handed; fully field-reversible
Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze
NOTE: Must use DL1225/DL1250 with Adams Rite™, 1850, 1950 as it requires more than 85 degrees of rotation
Narrow stile Prox/PIN PC-programmable model with audit trail

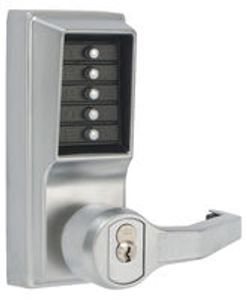

Simplex Unican L1000 Mechanical
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Factory-handed; not field reversible Key Override
Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included
Operation Modes: Pushbutton Access
Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
Privacy (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.
Economical: A cost effective access control solution
